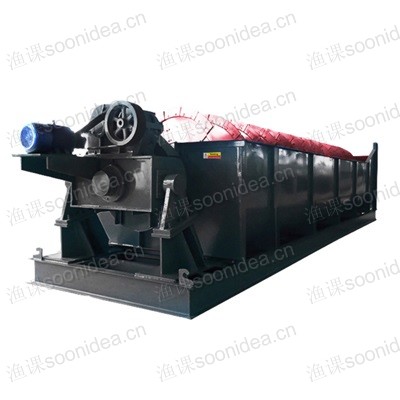

Spiral Classifier

Spiral diameter:0.3-3mm
Chute Length：3-14.3M
Power:1.1-48kw
Applied Material:Quartz, gold ore, iron ore, copper ore, ore, slurry, fine mud, cement clinker, magnetite, etc etc
Product description: Product description: Spiral classifier is widely used for distributing ore in the close circuit with ball mill, grading ore and fine slit in the gravity mill, grading granularity in the flow of metal
INQUIRY EMAIL

Application of spiral classifier:

spiral classifier application

Spiral classifier is widely used for distributing ore in the close circuit with ball mill, grading ore and fine slit in the gravity mill, grading granularity in the flow of metal ore-dressing and desliming and dehydrating in the washing. Featuring simple structure and reliable operation, the spiral classifier is very popular with users worldwide.

spiral classifier structure

Based on the principle that different solid particles with different size and specific gravity have different dropping speed in the water, fine mineral particles floating in the water will flow out from the overflow pipe and the large ones will sink to the bottom and then be discharged from the upper part by spiral pushing force. The base of the spiral classifier is made of channel steel and the body is created with welded steel plate. The water inlet of spiral axle and axle head adopt pig iron cover for wear resistance and long life.

Technical Parameters of Spiral Classifier :

Model	Spiral diameter (mm)	Rotary speed (r/min)	Chute length (mm≤)	Powerkw≤		Outline sizemm≤			weight
Model	Spiral diameter (mm)	Rotary speed (r/min)	Chute length (mm≤)	Drive	Lift	Length	Width	Height	t≤
FG-3	300	12-30	3000	1.1	----	3850	490	1140	0.7
FG-5	500	8-12.5	4500	1.1	----	5480	940	1274	1.6
FG-7.5	750	6-10	5500	3	----	6253	1250	1784	2.7
FG-12	1200	5-8	6500	5.5	1.5	9600	1572	3300	8.7
FC-12			8400	7.5	2.2	10371	1534	3910	11.1
2FG-12			6500	11	3	8060	3400	3100	14
2Fc-12			8400	15	4.4	10371	2787	3912	19.6
FG-20	2000	3.0-3.5	8400	11	2.8	10000	2570	4468	20.5
FC-20			12900	11	3	15398	2524	5345	29.1
2FG-20			8400	22	6	15760	4595	5635	36.5
2FC-20			12900	22	6	15760	4595	5635	50
FG-24	2400	2.5-4.0	9230	15	3	11562	2910	4966	25.6
FC-24			14200	18.5	4	16700	2926	6000	41
